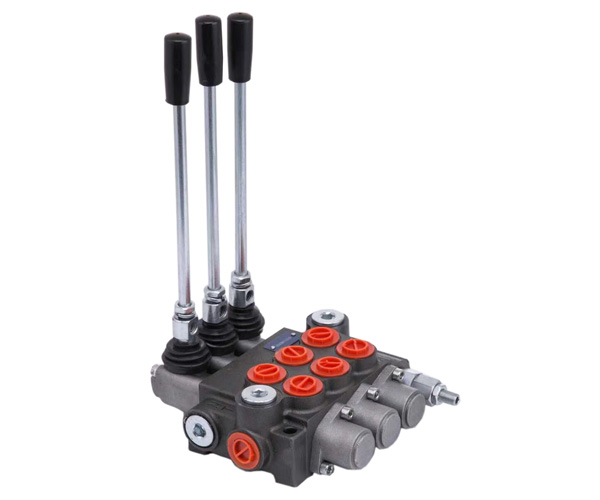

P40 series valves with middle-high pressure monoblock construction is developed based on Europe
technology.
◆ Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be
returned.
◆ Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.
◆ Oil way: Parallel circuit, power beyond option
◆ Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.
◆ Valve construction: monoblock construction, 1-6 levers.
◆ Spool Function: O,Y, P,A.
◆ Option: Hydraulic lock is available to be added on A and B port.
◆ Available manual, pneumatic control, electric and pneumatic control, hydraulic and electric control
and etc.
P40系列整體式多路閥是我公司引進歐洲的一種中高壓整體式多路閥。可按客戶要求在閥上設溢流閥、單向閥。溢流閥可調節壓力、單向閥防止油液倒流。換向閥滑閥機能有A、O、Y等，可任意組合，換向手柄有兩種安裝形式，便于不同方向的操作，該閥采用并聯或者串聯油路，設計有壓力輸出口與其它液壓元件相接提供動力源。經過特殊設計的密封方式，使閥密封性能卓越。該閥廣泛用于叉車、環衛車輛、小型裝載機等工程機械的液壓系統。
性能參數/SPECIFICATIONS
|
公稱壓力 Nominal Pressure (Mpa) |
最大壓力 Max. pressure (Mpa) |
公稱流量 Nom.flow (L/min) |
最大流量 (L/min) Max.Flow rate |
中位背壓 （MPa） Back Pressure |
|
| 20 | 31.5 | 40 | 40 | ≤1 |
