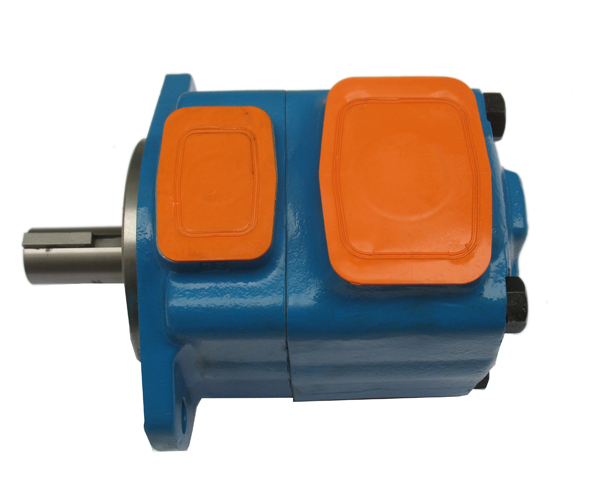

VQ series vane pump 單聯(lián)葉片泵
These pumps are of high pressure and high performance, which have been developed especially for low noise operation. To comply with a variety of applications including injection moulding machines, The intergral driving parts of the pumps are combined into a kit form and available for supply as a cartridge kit. Therefore, the replacement of the driving parts can be done easily.

子母葉片泵提供低噪音、才壽命、高生產(chǎn)率和應用靈活。
Technical date 參數(shù)

Model Series	▲Code USgpm	Displacement ml/r(in3/r)	Max.speed r/min	Max.pressure MPa
20VQ	2	7.5(0.46)	2700	21
	3	10(0.61)
	4	13(0.79)
	5	16.5(1.01)
	6	19(1.16)
	7	23(1.40)
	8	27(1.67)
	9	30(1.85)
	10	32(1.95)
	11	36(2.20)
	12	40(2.47)
	14	45(2.78)
25VQ	10	32.5(1.98)	2700	21
	12	39(2.38)
	14	45(2.78)
	15	47(2.89)
	17	55(3.36)
	19	60(3.66)
	21	67(4.13)
35VQ	21	67(4.13)	2700	21
	25	81(4.94)
	30	97(5.91)
	32	101(6.16)
	35	112(6.83)
	38	121(7.37)
45VQ	42	138(8.41)	2700	21
	45	147(8.95)
	50	162(9.85)
	57	181(11.05)
	60	193(11.75)
	66	212(12.93)
	75	237(14.46)
