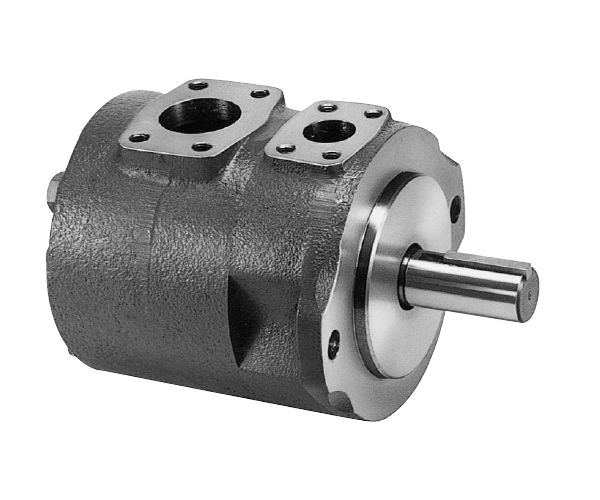

SQP series vane pump 單聯(lián)葉片泵
These pumps are of high pressure and high performance, which have been developed especially for low noise operation. To comply with a variety of applications including injection moulding machines, The intergral driving parts of the pumps are combined into a kit form and available for supply as a cartridge kit. Therefore, the replacement of the driving parts can be done easily.

子母葉片泵提供低噪音、才壽命、高生產率和應用靈活。
Technical date 參數(shù)

Model Series	▲Code USgpm	Displacement ml/r(in3/r)	Max.speed r/min	Max.pressure MPa
SQP1	2	7.5(0.46)	1800	14
	3	10(0.61)	1800	14
	4	13(0.79)	1800	21
	5	16.5(1.01)	1800	21
	6	19(1.16)	1800	21
	7	23(1.40)	1800	21
	8	27(1.67)	1800	21
	9	30(1.85)	1800	21
	10	32(1.95)	1800	21
	11	36(2.20)	1800	21
	12	40(2.47)	1800	16
	14	45(2.78)	1800	14
SQP2	10	32.5(1.98)	1800	17.5
	12	39(2.38)	1800	17.5
	14	45(2.78)	1800	17.5
	15	47(2.89)	1800	17.5
	17	55(3.36)	1800	17.5
	19	60(3.66)	1800	17.5
	21	67(4.13)	1800	17.5
SQP3	21	67(4.13)	1800	17.5
	25	81(4.94)	1800	17.5
	30	97(5.91)	1800	17.5
	32	101(6.16)	1800	17.5
	35	112(6.83)	1800	17.5
	38	121(7.37)	1800	17.5
SQP4	42	138(8.41)	1800	17.5
	45	147(8.95)	1800	17.5
	50	162(9.85)	1800	17.5
	57	181(11.05)	1800	17.5
	60	193(11.75)	1800	17.5
	66	212(12.93)	1800	17.5
	75	237(14.46)	1800	14
