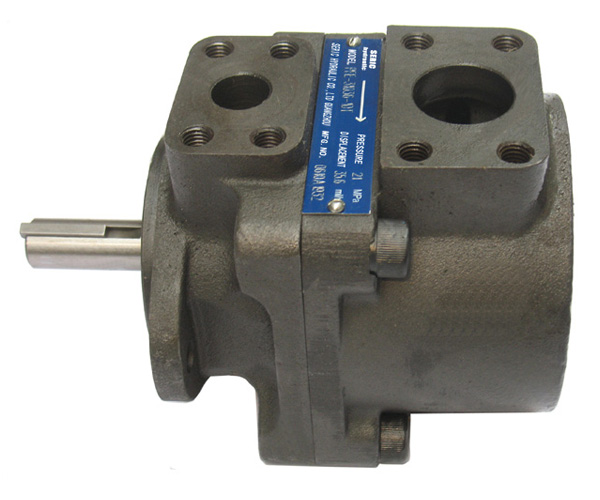

PFE series vane pump 單聯(lián)葉片泵
These pumps are of high pressure and high performance, which have been developed especially for low noise operation. To comply with a variety of applications including injection moulding machines, The intergral driving parts of the pumps are combined into a kit form and available for supply as a cartridge kit. Therefore, the replacement of the driving parts can be done easily.

子母葉片泵提供低噪音、才壽命、高生產(chǎn)率和應用靈活。
Technical date 參數(shù)

Model Series	Code	Displacement ml/r(in3/r)	Max. MPa	Output flow (L/min)	Driving power(KW)	Max. r/min
PFE-21	005	5.0 (0.3)	21	4.8	3.5	3000
	006	6.3 (0.378)	21	5.8	4.0	3000
	008	8.0 (0.48)	21	7.8	5.5	3000
	010	10.0 (0.6)	21	9.7	6.5	3000
	012	12.5 (0.75)	21	12.2	8	3000
	016	16 (0.96)	21	15.6	10	3000
PFE-31	016	165(1.01)	21	16	6.5	2800
	022	21.6 (1.322)	21	23	10	2800
	028	28.1 (1.72)	21	33	14	2800
	036	35.6 (2.134)	21	43	18	2800
	044	43.7 (2.26)	21	55	23	2800
PFE-41	029	29.3 (1.76)	21	34	14	2500
	037	36.6 (2.21)	21	45	18	2500
	045	45.0 (2.78)	21	57	23	2500
	056	55.8 (3.45)	21	72	30	2500
	070	69.9 (4.318)	21	91	37	2500
	085	85.3 (5.12)	21	114	47	2000
PFE-51	090	90 (5.4)	21	114	47	2200
	110	109.6 (6.576)	21	141	58	2200
	129	129.2 (7.759)	21	168	69	2200
	150	150.2 (9.02)	21	197	80	1800
