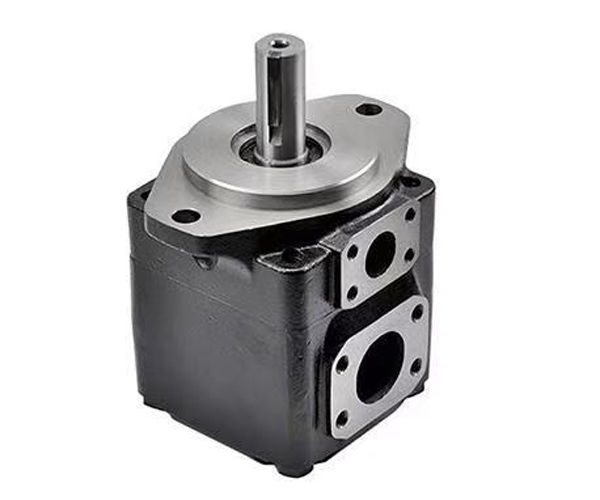

T6 series vane pump 單聯(lián)葉片泵
These pumps are of high pressure and high performance, which have been developed especially for low noise operation. To comply with a variety of applications including injection moulding machines, The intergral driving parts of the pumps are combined into a kit form and available for supply as a cartridge kit. Therefore, the replacement of the driving parts can be done easily.
子母葉片泵提供低噪音、才壽命、高生產(chǎn)率和應(yīng)用靈活。

Technical date 參數(shù)

Model Series	▲Code USgpm	Displacement ml/r	Max.speed r/min	Max.pressure MPa
T6C	03	10.8	2800	28
	05	17.2
	06	21.3
	08	26.4
	10	34.1
	12	37.1
	14	46
	17	58.3
	20	63.8
	22	70.3
	25	79.3
	28	88.8
	31	100
T6D	14	47.6	2500	24.5
	17	58.3
	20	66
	24	79.5
	28	89.7
	31	98.3
	35	111
	38	120.3
	42	136
	45	145.7
	50	158
T6E	42	132.3	2200	24.5
	45	142.4
	50	158.5
	52	164.8
	57	179.8
	62	196.6
	66	213.3
	72	227.1
	85	269
